DR90-A01 Dynamic R-Series 90A Controller Pride Victory Freerider Rascal Mobility
This item has been added to your cart
DR90-A01 Dynamic R-Series 90A Controller Pride Victory Freerider Rascal Mobility added to cart.
7 available in stock
View Cart or continue shopping.
Please wait while we finish adding this item to your cart.
This estimate is based on:
- The seller's handling time
- International Shipping (2 to 3 weeks) transit time to US
Actual delivery times may vary. Have shipping questions? Contact the seller
Taiwan
Item details
More about this item
*Inquiry before order!
-for confirm the replacement part fit to your mobility scooters or not.
-for revise the combine order shipping fee.
-for more quantity, and need to confirm the value.
-for B2B or wholesale cooperation (sea shipment & small business trade)
-for inquiry about the international shipping status.
-sorry for limitation of delivery destinations!
-Please use the real consignee Name for order, otherwise your parcel will be in the risk of not delivered while you use nickname.
More parts information? Find us with keyword “mobilityscooterpart” via google.
You can find us here:

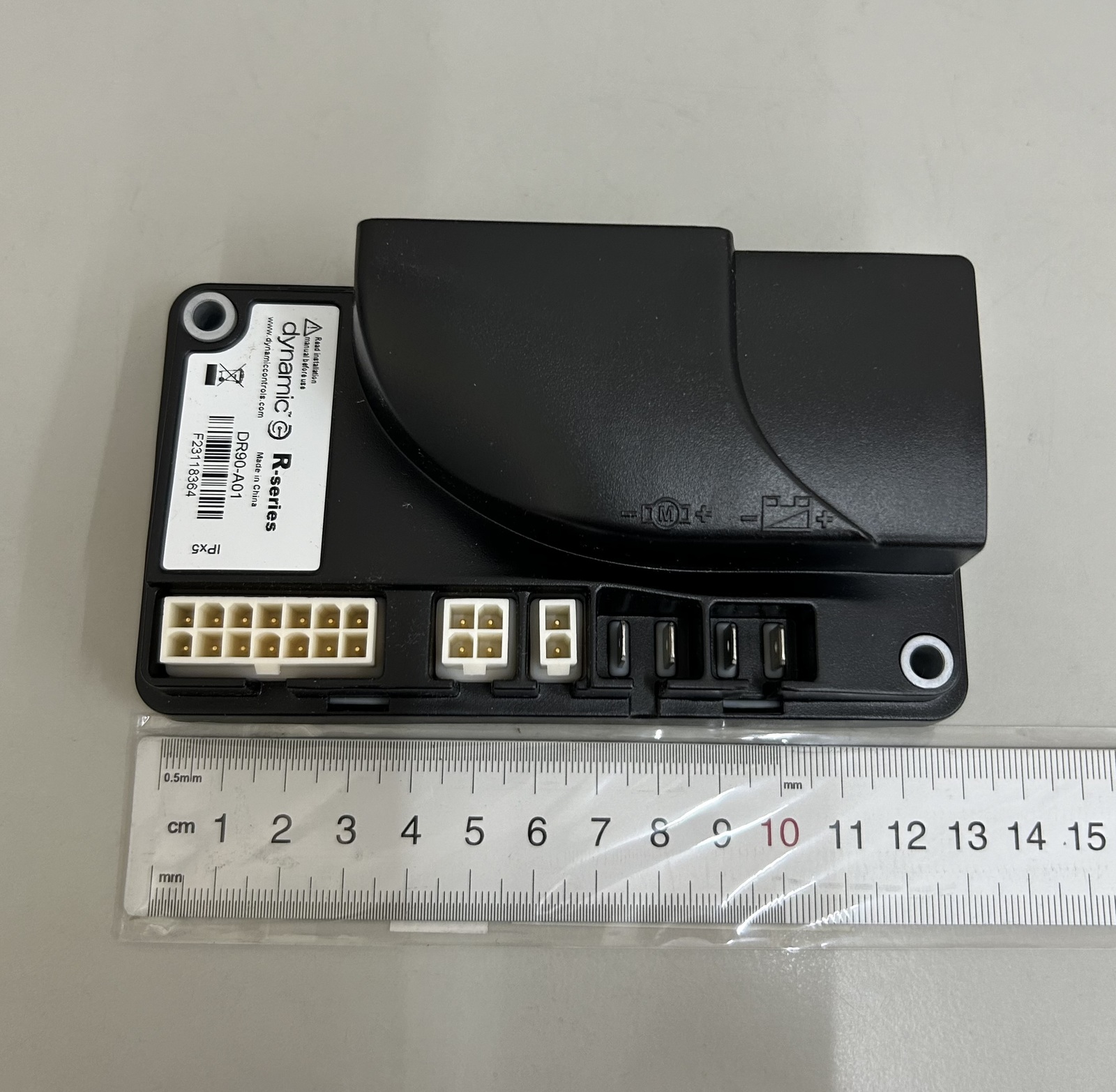

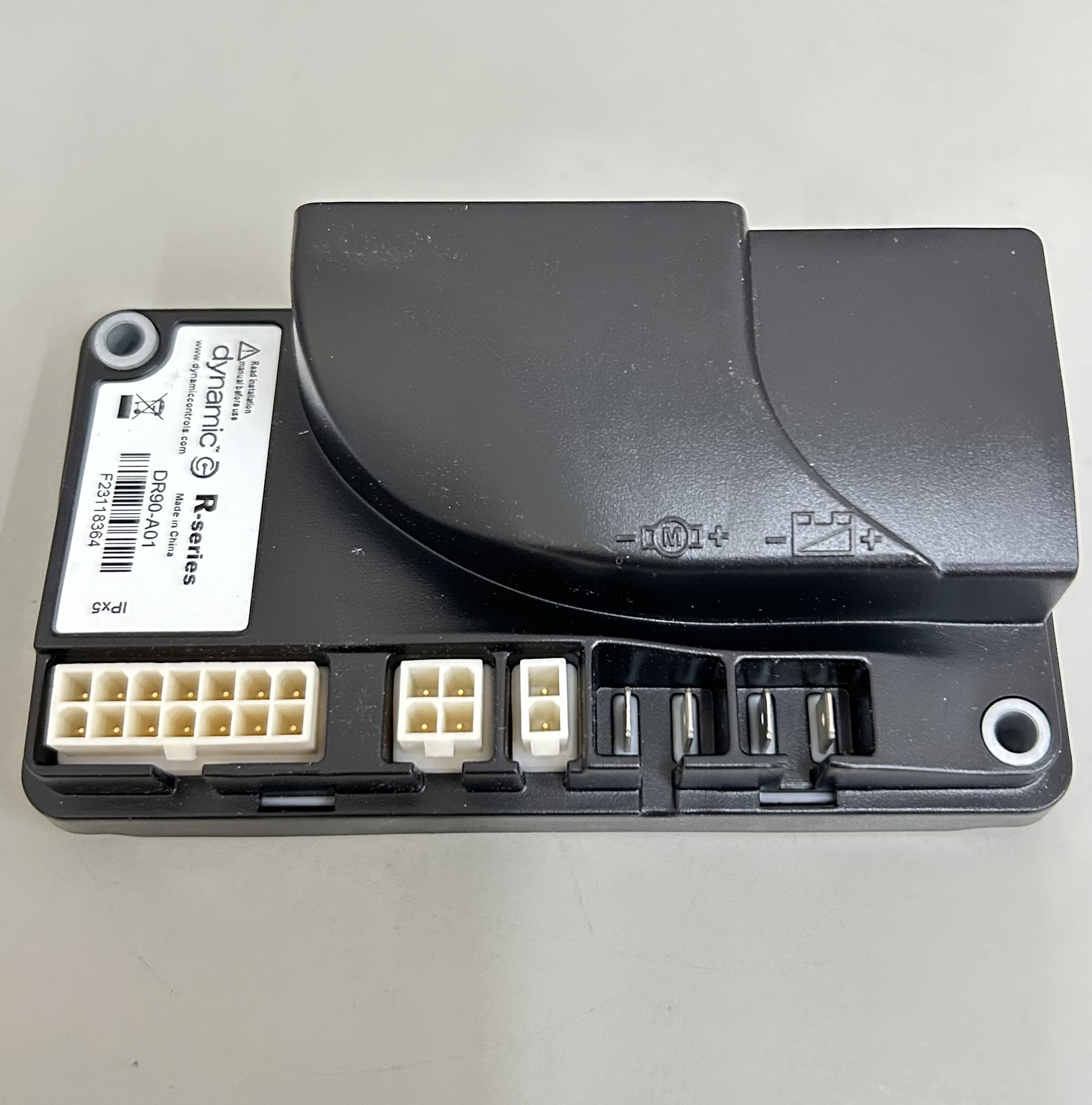

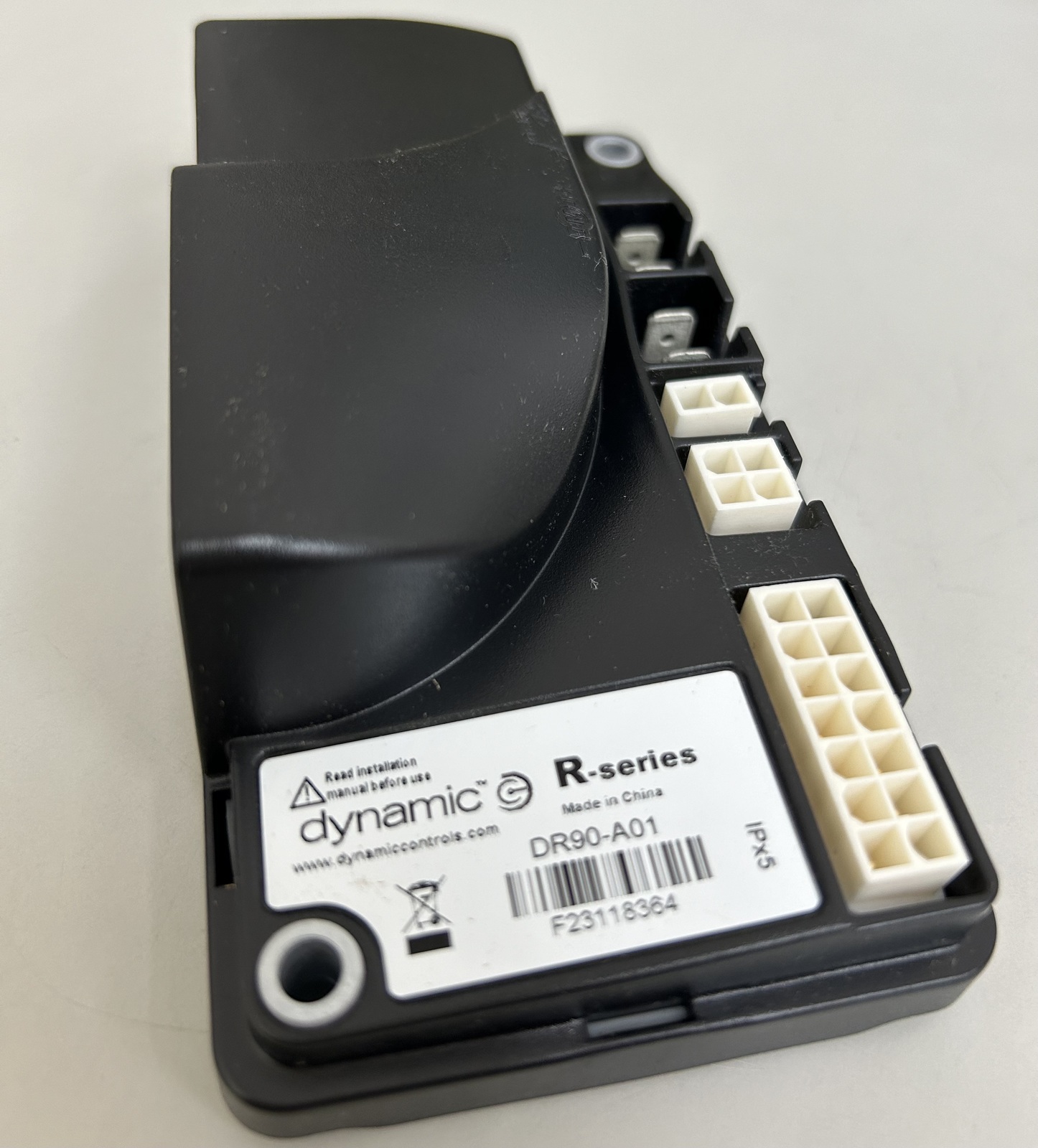

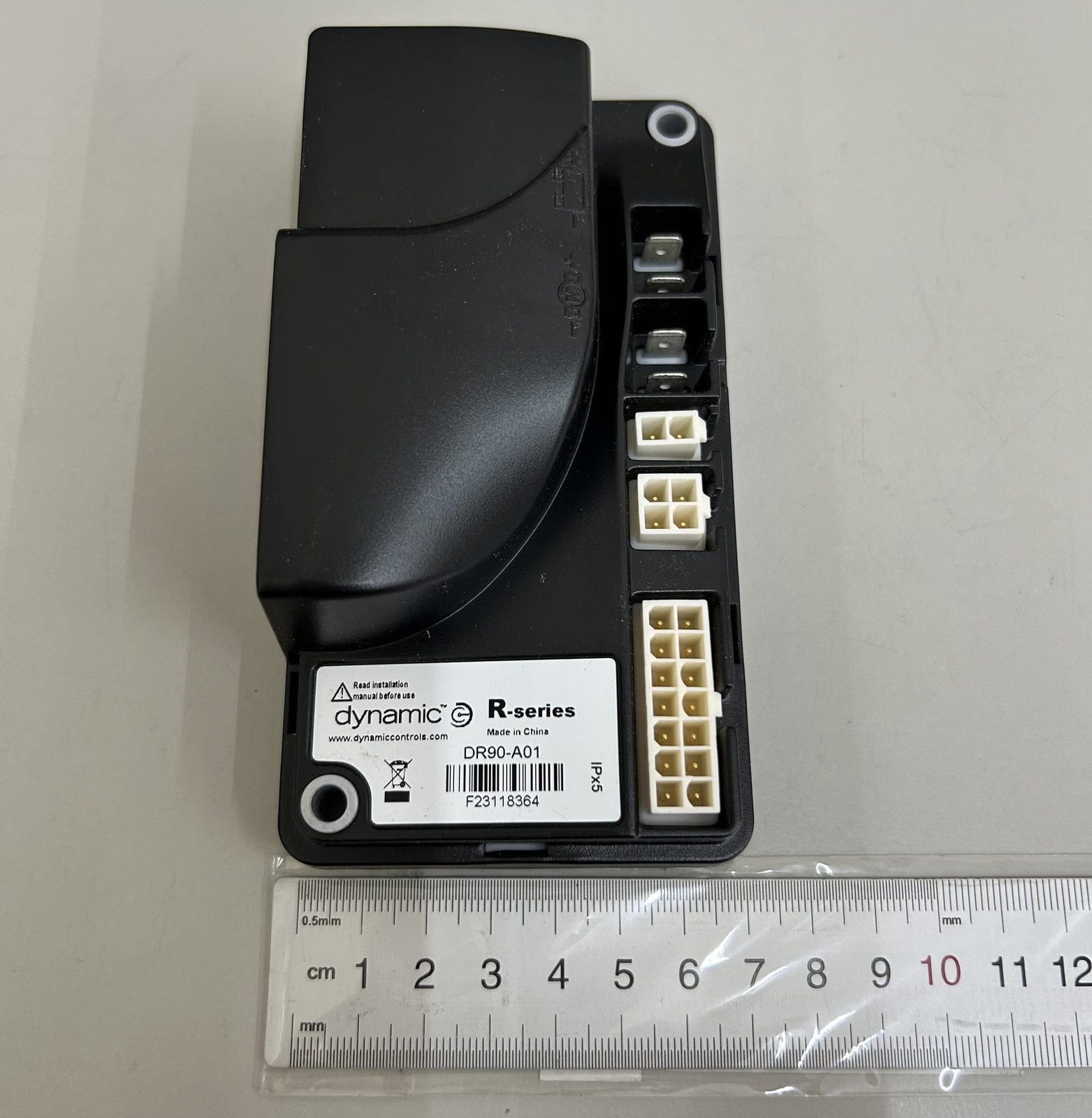

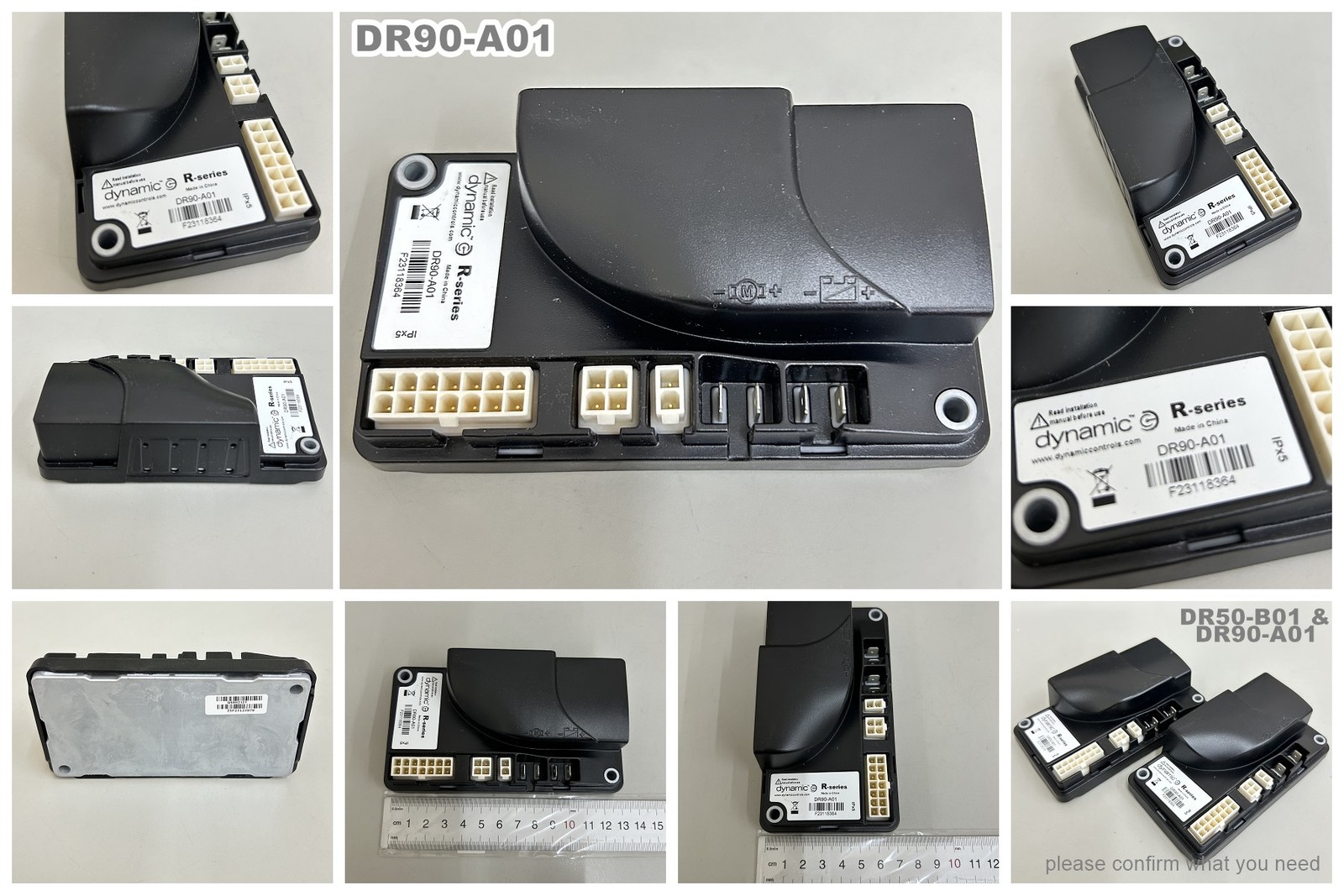

1.Product: DR90-A01 Dynamic R-Series Controller 90Amp ( Unit 1=1 piece)
2.Condition: New
3.Description:
1) Brand: Dynamic
2) Model: DR90-A01 (90Amp)
{We also provide: DynamicDR50/ DR90/ DS90/ DS120/ DS160/DS180/REMD01 ...)
3) Supply voltage, Brake voltage: 24V DC
4) Material: Die-cast aluminum base with plastic cover (UL94 V-0 rating)
5) Dimensions: 131.5 x 72.5 x 40 (mm)
6) Weight: 260g (each)
{order 2pcs: 520g/ 13.15*7.25*8cm}
{Order 4pcs: 1040g/ 14.5*13.5*8cm}
7) others:
*Operating voltage: 18~32V DC
*Peak current: 70 Amps
*Boost current: 20 Amps
*Boost duration: 5-10 seconds
*Charging current: 8 Amps RMS
*Protection Rating: IPX5
*Operating Temperature: -25?~50?
8) special note :
The 90 amp R-series controller for the Pride Victory 9 (SC609/SC709) and Celebrity X (SC400/SC4001/SC440/SC4401) is available withthe CTE program. The programming is dependant on which throttle potentiometer (or "throttle pot") is used on the scooter. You must choose which of these programming options you need when you order your controller. Please check your Celebrity X serial number closely before ordering.
(**We also provide throttle potentionmeters, if any problem, please contact seller before order.)
4.Delivery:
1) International worldwide shipping charged by "Air Parcel"-cheaper than EMS.
>>EMS or DHL cost higher but sooner, please contact us if you need this carry service.
>>Higher fee need be re-quoted.
2) Worldwide handling time will be about 2 business day before we ship items from
our Taiwan warehouse.
3) Air Parcel common limitation:
>>Gross weight: under 20KG (or 30KG to USA, UK, New Zealand...)
>>Volume:under L*1+W*1+H*1 < 2m ( 200cm) ( or 300cm to USA, UK, New zealand...)
>>Both need be follow, but also has countries difference,
please contact us if you need to know more.
4) We do combined shipping, so please check out our other items in the store.
As conbined order,Please wait our new Invoice, do not direct pay by auto-checkout-fee higher.
5) Worldwide with Air Parcel from Taiwan (14 to 21 business days)
*the delay delivery might be happened due to different countries dealing speed.
If you need to pay more to update the delivery speed, please contact us to use DHL.
*Arrival days may have the international countries difference, if you need to confirm, please contact us.
*Send To other countries, please contact us.
*Spain-Canary islands is not accepted for service from Taiwan.
*After Delivery, you can track the package from our local postal system:
(English service)
6) Deliver on Mon-Fri, not on Sat-Sun, thank you for your waiting.
7) General Guide about shipping
Will ship worldwide by post “Air Parcel”,
and if you need, we will provide trace number.
For a registered package, please arrange someone to sign for the package.
If you have problem, email us before shipping please.
We would note the suitable delivery date for you.
5.Payment:
1)PayPal/ Western Union/ TT (Bank Transfer)
*Paypal is the directly payment terms from this e-commerce website.
*If you need T/T payment, please contact us to get Swift Code.
2) Pay before delivery
3) Invoice will be sent with the package
4) About the import duties/fee, taxes:
The Import duties, taxes and charges are not included in the item price or shipping charges.
Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.
6.Return: we accept the right for you to return the damaged products, please contact us and we will deal with it as soon as possible
7.About Seller: our company are able to share with you about Repair Mobility Scooter experience, and we can offer OEM parts. More information, please contact us, thank you.
