MSP-CTE 70Amp Controller replace Rhino 70A Controller DS72KA mobility scooter

-Inquiry before order!

-for confirm the replacement part fit to your mobility scooters or not.

-for revise the combine order shipping  fee.

-for more quantity, and need to confirm the value.

-for B2B or wholesale cooperation (sea shipment & small business trade)

-for inquiry about the international shipping status.

-sorry for limitation of delivery destinations!

-Please use the real consignee Name for order, otherwise your parcel will be in the risk of not delivered while you use nickname.

More parts information? Find us with keyword “mobilityscooterpart” via google.

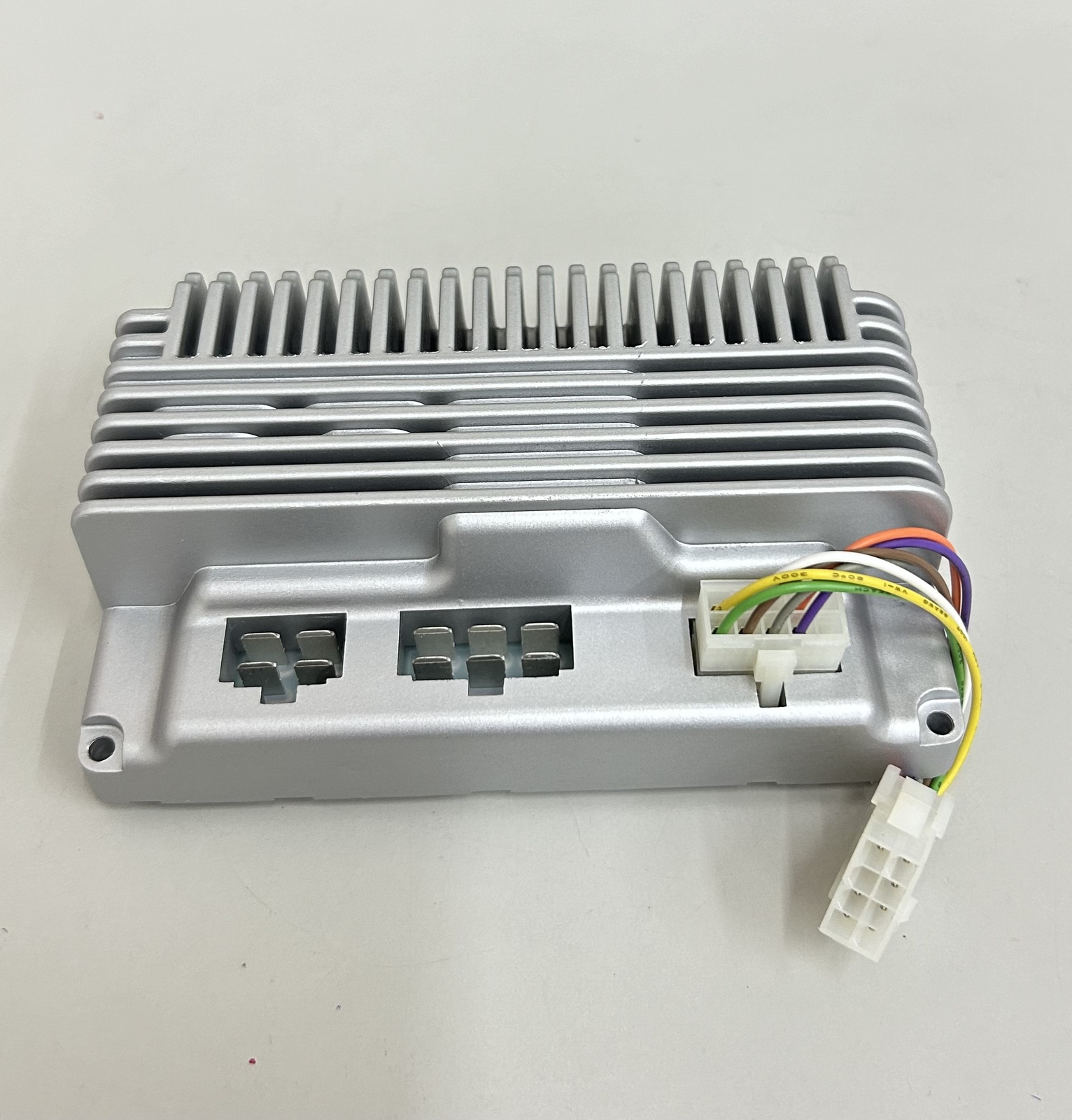

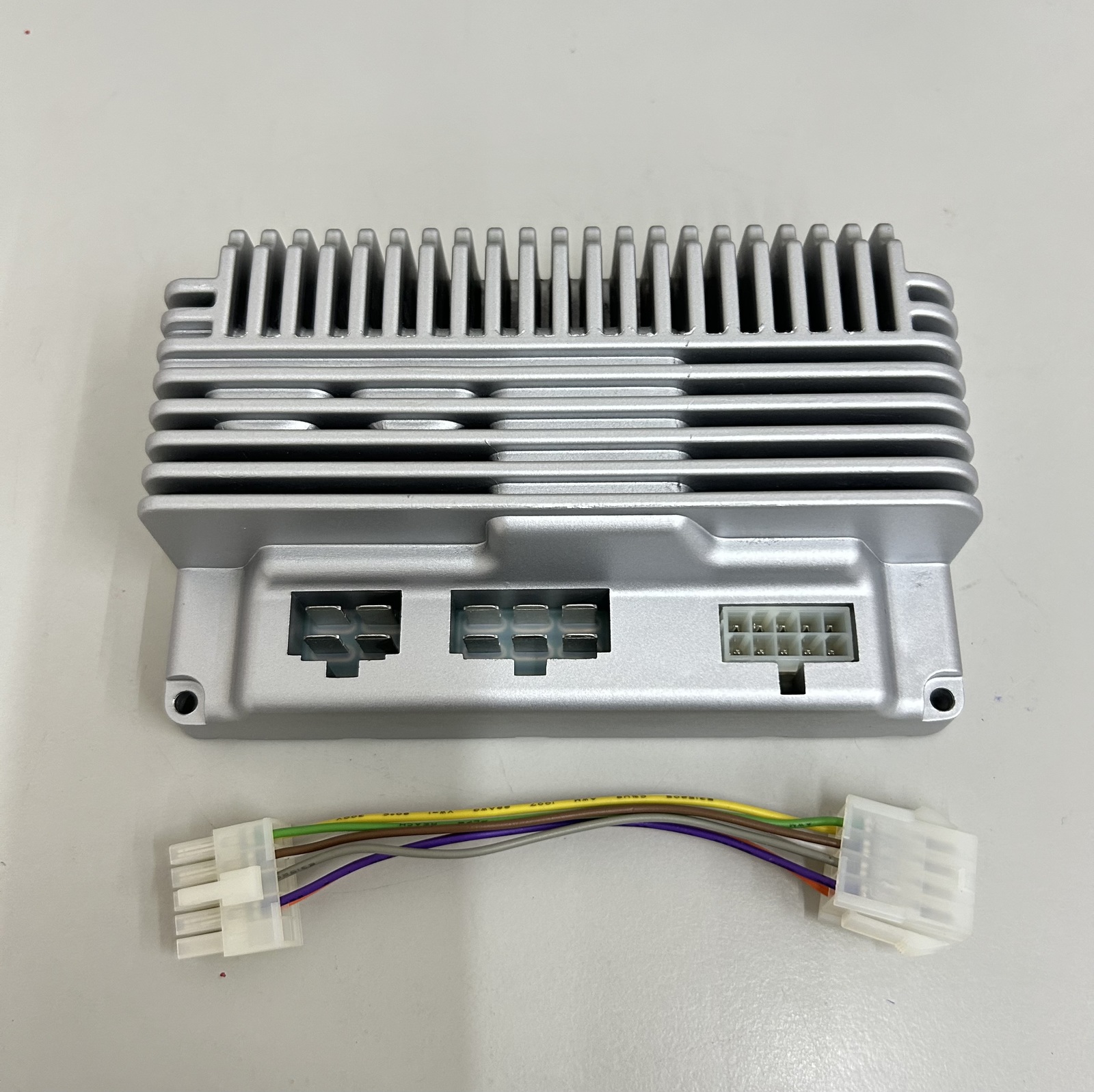

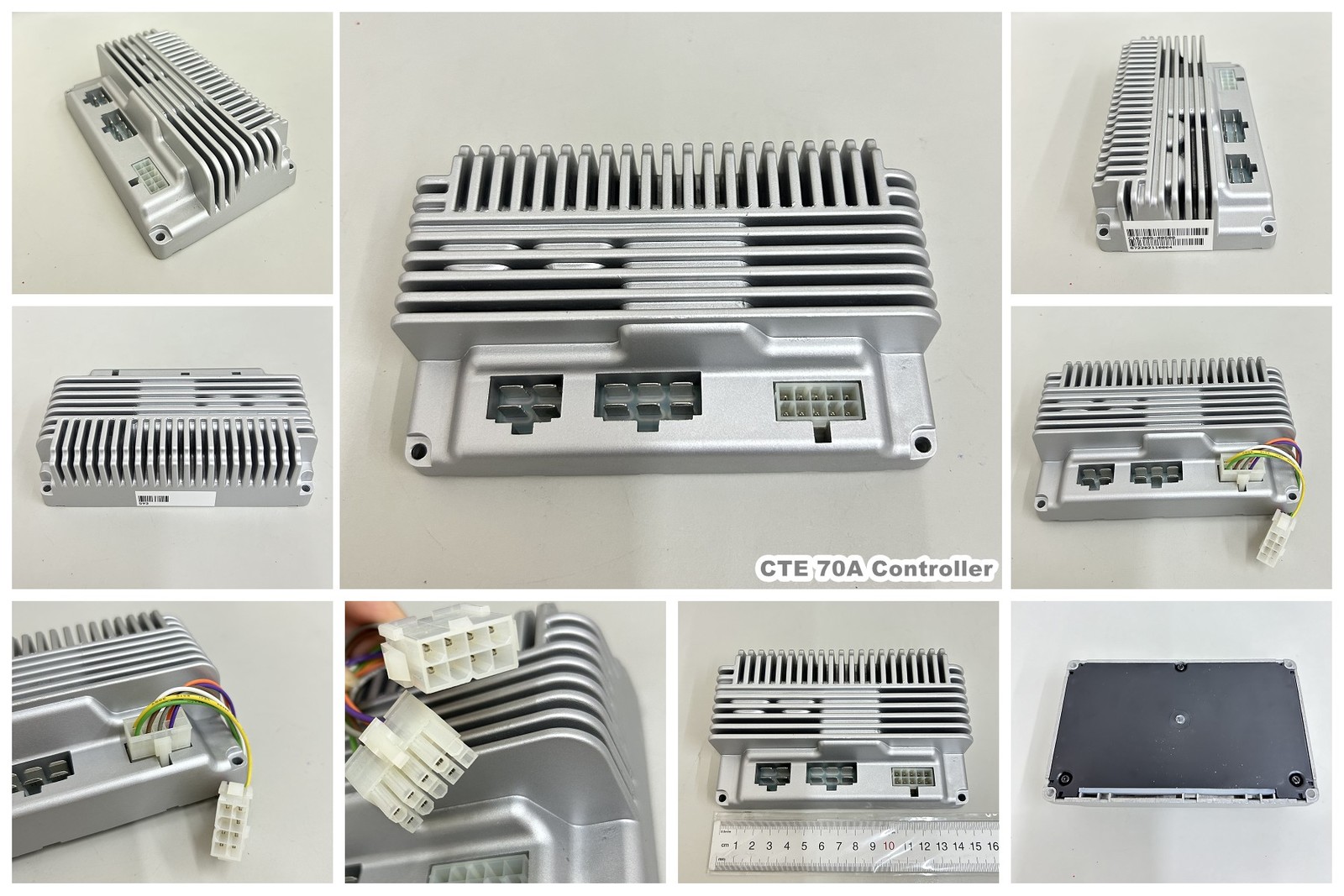

1.Product:  CTE70 Controller ( Unit 1=1 piece)

2.Condition: New

3.Description:

? Brand: CTE

?Standard pack: one controller only without any wirings or connectors

?Case Material: Die-cast aluminum

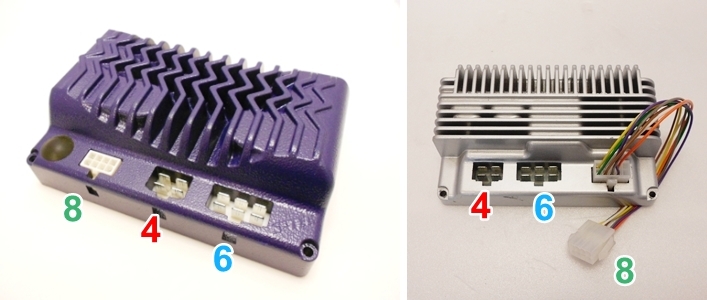

?applicable to be replacement for Dynamic Rhino 70A controller

?Motor Type: Permanent magnet DC brushed motor with a solenoid controlled motor park-brake

?Armature Resistance: 5m? ~ 510 m?

?Park Brake Output: 1.3A max

?Nominal Battery Voltage: 24V

?Operating Voltage: 16V ~ 34.5V

?Nominal Current Limit: 70A

?Continues Output Current: 28A(70A controller) at 25°C ambient temperature

?Neutral Current: <45mA at 24V

?Sleep/power off current: <2mA/1mA

?External Speed Control: 5k? linear potentiometer or 0~5V

?Forward/Reverse Control: Bi-directional (wigwag) or Single direction with Forward / Reverse switch

?Motor/Park Brake Connection: AMP 4-way 250 series

?Control Lead Connection: TKP P6657I-10F or equivalent

?Power Lead Connection: AMP 6-way 250 series

?Operating Temperature: -25?~50?

?Operating Humidity: 0~85% RH non-condensing

?Electromagnetic Compatibility: ISO7176-21

?Performance & Safety: a boot must be fitted over control lead connector to meet IPX4

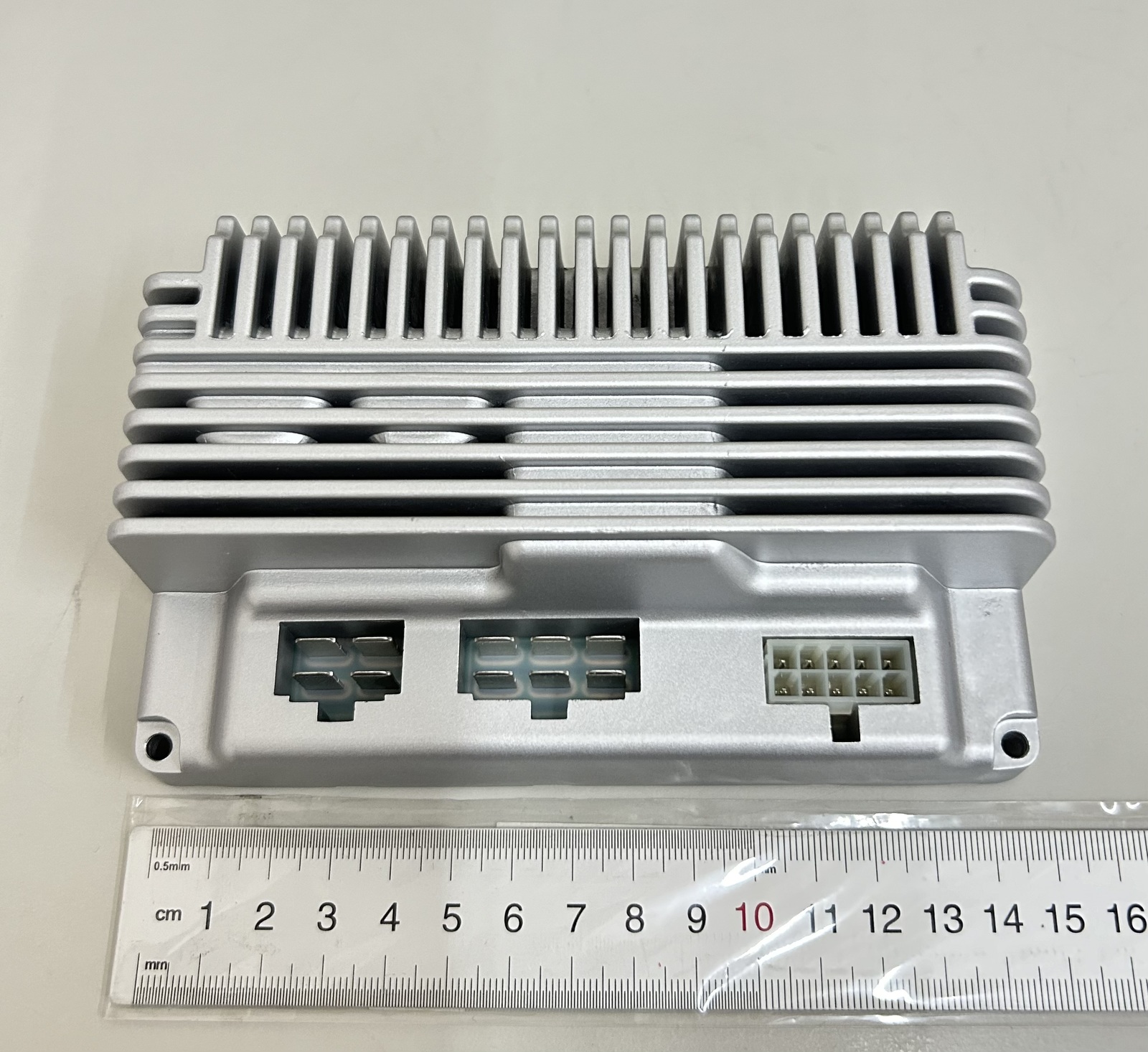

?Dimension: 148 x 91 x 42.5 (mm)

?Weight: 580 g
