TOCOS RVQ24YS080321S 5KVR Throttle potentiometer replace Claro Mexico PMMC485

*Please notice:
For saving the delivery cost for such a small part, we will use a cheaper delivery with a register service.
This is an untrackable service, but it will be delivered to you safely.
We will update an AWB for you after the parcel is sent out.
It can be inquired from your local postal system after it is arrived in your country .
If that's not acceptable, please request us to upgrade a trackable service for you.
Thank you.

-Inquiry before Order!

-for confirming the replacement part fit to your mobility scooters or not.
-for changing the combine order shipping fee.
-for more quantity,and need to confirm the value.
-for B2B or wholesale cooperation

1.Product:5KVR-T21S-WA(B)

Throttle Potentiometers 5KVR-RVQ24YS08-03 21S assembly with square base ( Unit 1=1 pcs)

This type is without a wig wag.

If you need a wig wag, we have different options.



2.Condition: New

3.Description:

1) Brand: TOCOS

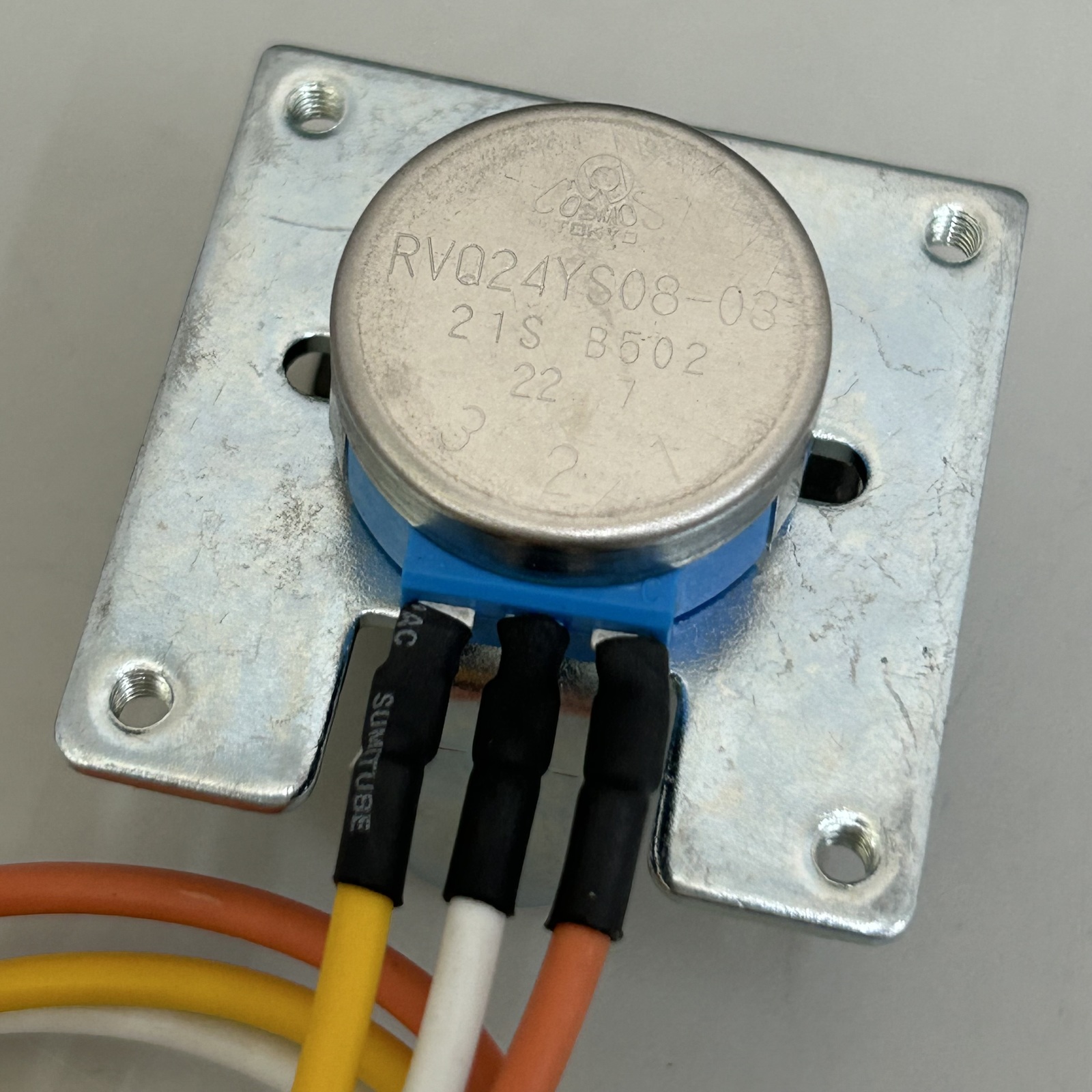

2) RVQ24YS08-03 21S: 21mm in shaft length

   >>the replacement for Claro Mexico PMMC485 potentiometer.

   >> the Claro Mexico potentiometer is no more available.

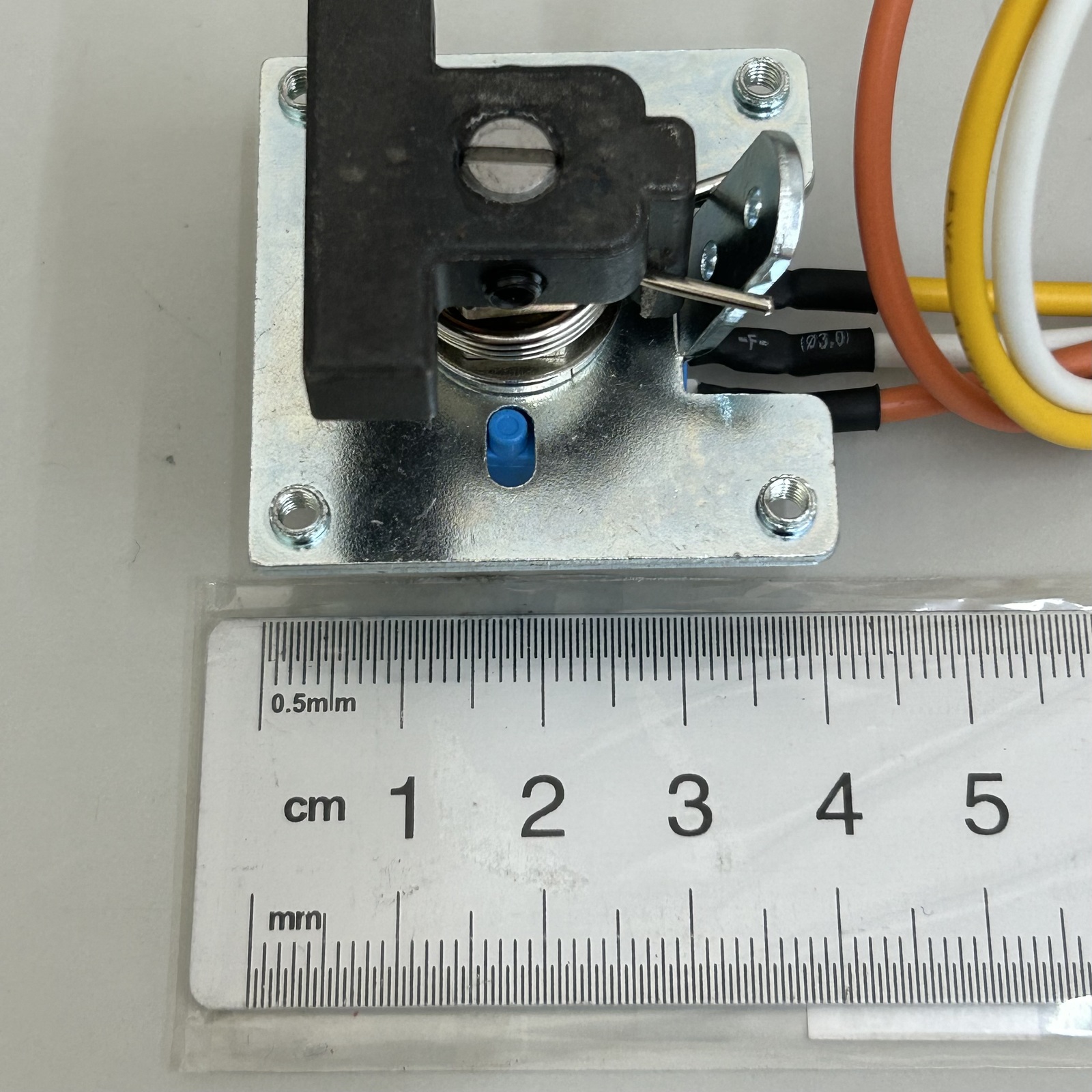

 3) One selected throttle potentiometer with a lever and wiring harness, the hole spacings on the mounting plate are 3.3 (cm) apart (as picture)

4) Weight: 110g

5) Items: we can offer-

 *5KVR-T21S-WA: (RVQ24YS03 21S) Throttle Pot Assembly with Lever

*5KVR-T30S-WA: Tocos 5KVR-30S (RVQ24YS03 30S) Throttle Pot Assembly with Lever

*other 5KVR with wig wag for Kymco/ Drive/ CTM / Freerider mobility Scooters



 6) Nominal total resistance: 5K Ohm (5000?)

-Resistance tolerance: ±10%

-Rotational life: 2,000,000 cycles

-Adjustment travel: 300°±5°

-Stainless shaft, metal bushing

-Waterproof: IP64

-Size: ?23 mm

-Operating Temp. Range from -10? to 85?

**Cosmos (RVQ24YN03-08) has been replaced by RVQ24YS08-03 21S/30S/50S series.

7) Assembly set up in Taiwan

8) Compatibility models as : Potential applications: electric wheelchair, manual controls (throttle, joystick), electric vehicles, personal mobility, off-road vehicles, golf cart, all terrain vehicles



4.Delivery:

 1) International worldwide shipping charged by "Air mail small package"-cheaper than EMS.
   >>EMS or DHL cost higher but sooner, please contact us if you need this carry service.
   >>Higher fee need be re-quoted.

 2) Worldwide handling time will be about 2 business day before we ship items from

our Taiwan warehouse.

3) Air Parcel common limitation:
   >>Gross weight: under 20KG (or 30KS to USA)
   >>Volume:under L*1+W*1+H*1 < 2m ( 200cm)
   >>Both need be follow, but also has countries difference.

4) We do combined shipping, so please check out our other items in the store.

   As conbined order,Please wait our new Invoice, do not direct pay by auto-checkout-fee higher.

5) Worldwide with Air mail small package from Taiwan (9 to 14 business days)

   *worldwide: AE/AR/ AT/ AU /BE/ BR / CA/ CH/ CL / CO / CZ / DE /DK / EG / ES/

 FI / FR/ GR/ HU/ ID/ IE/ IL/ IN/ IR/ IT / JO /JP/ KR / MC/ MX/ NL / NO/ NZ /OM/ PA/ PH /PK / PL/ PR / PT /QA/ RO/ RU/ SA/ SE/SG /SK/ TH/ TR/ UK/ US /VN/ ZA

  *To other countries, please contact us.

6) Deliver on Mon-Fri, not on Sat-Sun, thank you for your waiting.

7) General Guide about shipping

Will ship worldwide by post “AIR mail small package , and if you need, we will provide trace number.

For a registered package, please arrange to have someone to sign for the delivery. If you have problem, email us before shipping please. We would note the suitable delivery date, for you to receive your package.



5.Payment:

 1) PayPal/ Western Union/ TT (Bank Transfer)

  *Paypal is the directly payment terms from this e-commerce website.

  *If you need T/T payment, please contact us to get Swift Code.

 2) Pay before delivery

 3) Invoice will be sent with the package

 4) About the import duties/fee, taxes:

The Import duties, taxes and charges are not included in the item price or shipping charges. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.



6.Return: we accept the right for you to return the damaged products, please contact us and we will deal with it as soon as possible



7.About Seller: our company are able to share with you about Repair Mobility Scooter experience, and we can offer OEM parts. More information, please contact us, thank you.
